First Team Legend Jr In-ground Fixed Height Basketball System

First Team Legend Jr In-ground Fixed Height Basketball System:

  • Extensive backboard selection.
  • All First Team goals are direct mounted to eliminate backboard breakage when players hang on the rim.
  • Extension arm is constructed of 5” x 5” (3/16” wall) solid steel tubing.
  • Optional TuffGuard all-weather bolt-on backboard padding available in several colors.
  • Tough 5” x 5” (3/16” wall) one piece steel post.
  • Optional all-weather velcro wrap-around post padding for added safety.
  • Post is buried 42” below playing surface (FT17 ground sleeve option can be purchased to make post removable).
  • Post to backboard distance is 52”.
  • Available in direct bury or bolt down post systems.

MODELS: Model name designates backboard size and material and in some cases the style of goal.

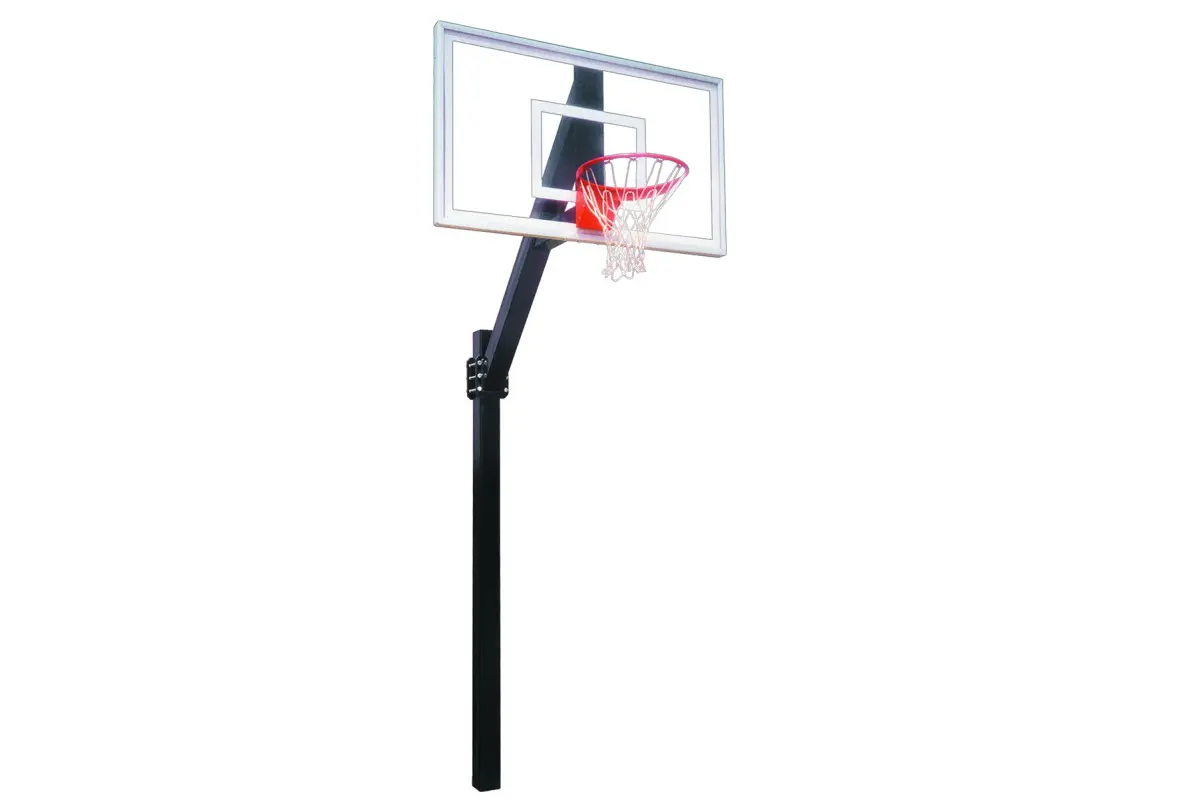

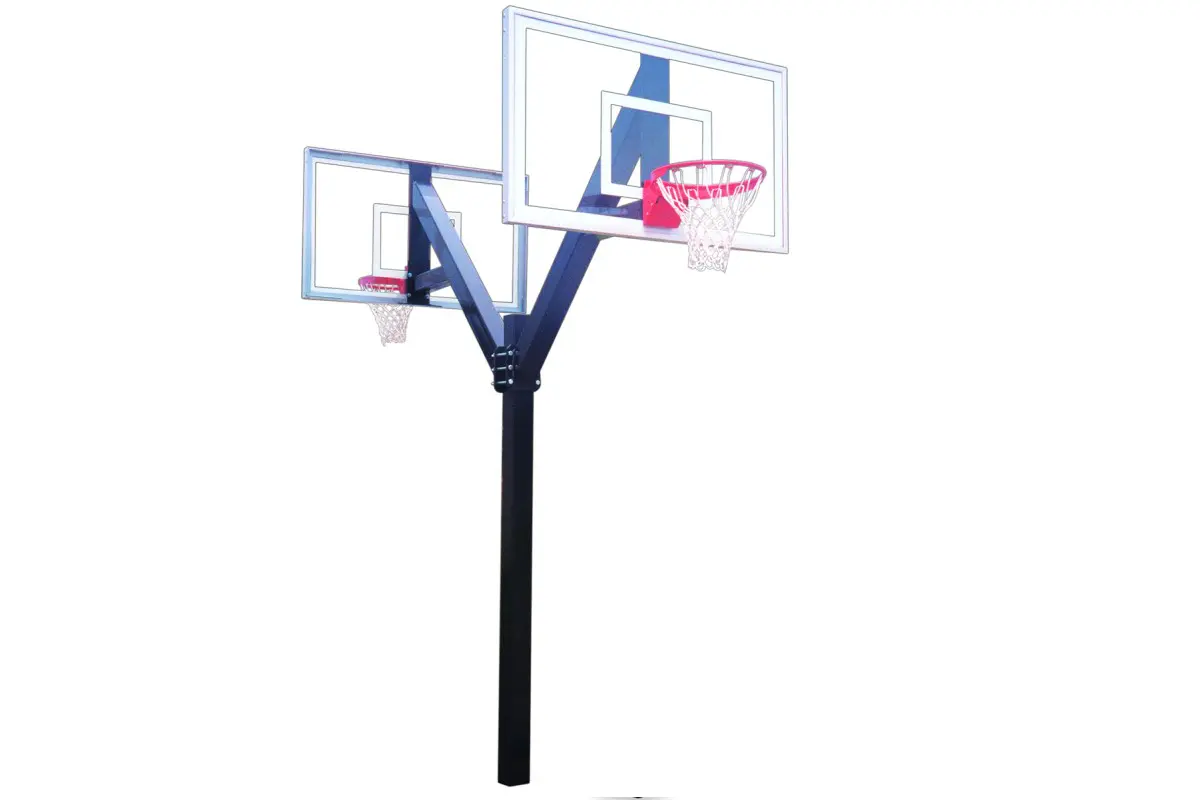

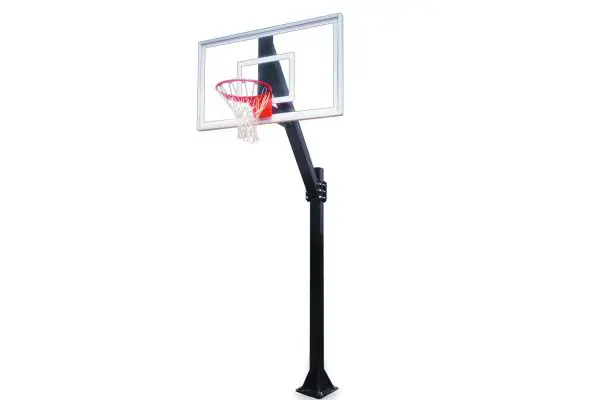

Select – 36″x60″x 1/2″ clear acrylic backboard, heavy duty breakaway goal, net

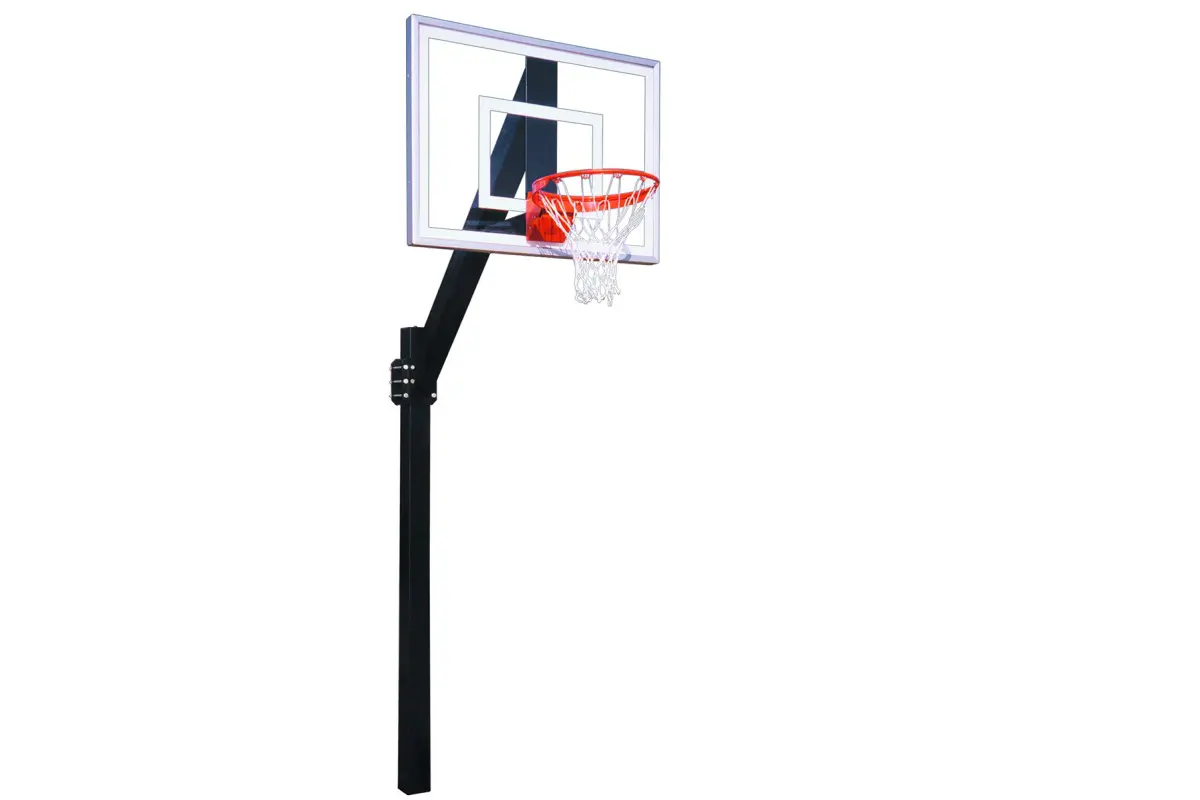

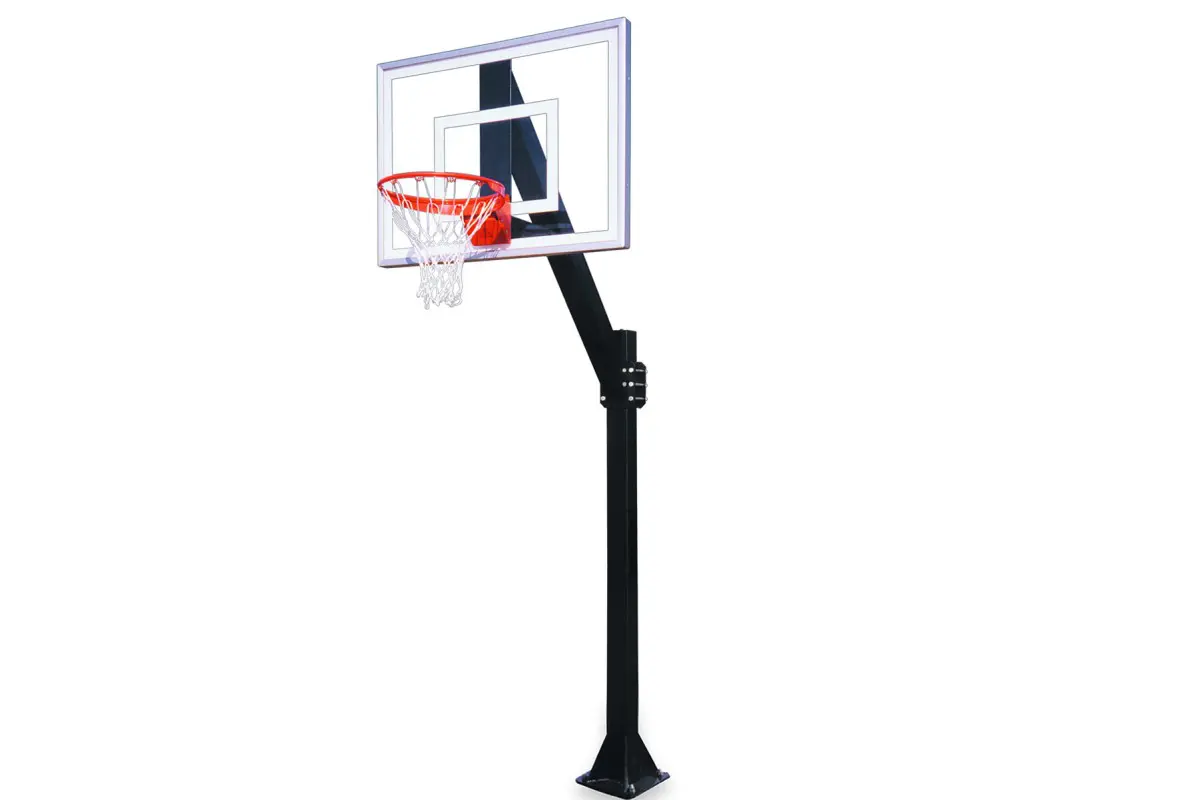

III – 36″x54″x 1/2″ clear acrylic backboard, heavy duty breakaway goal, net

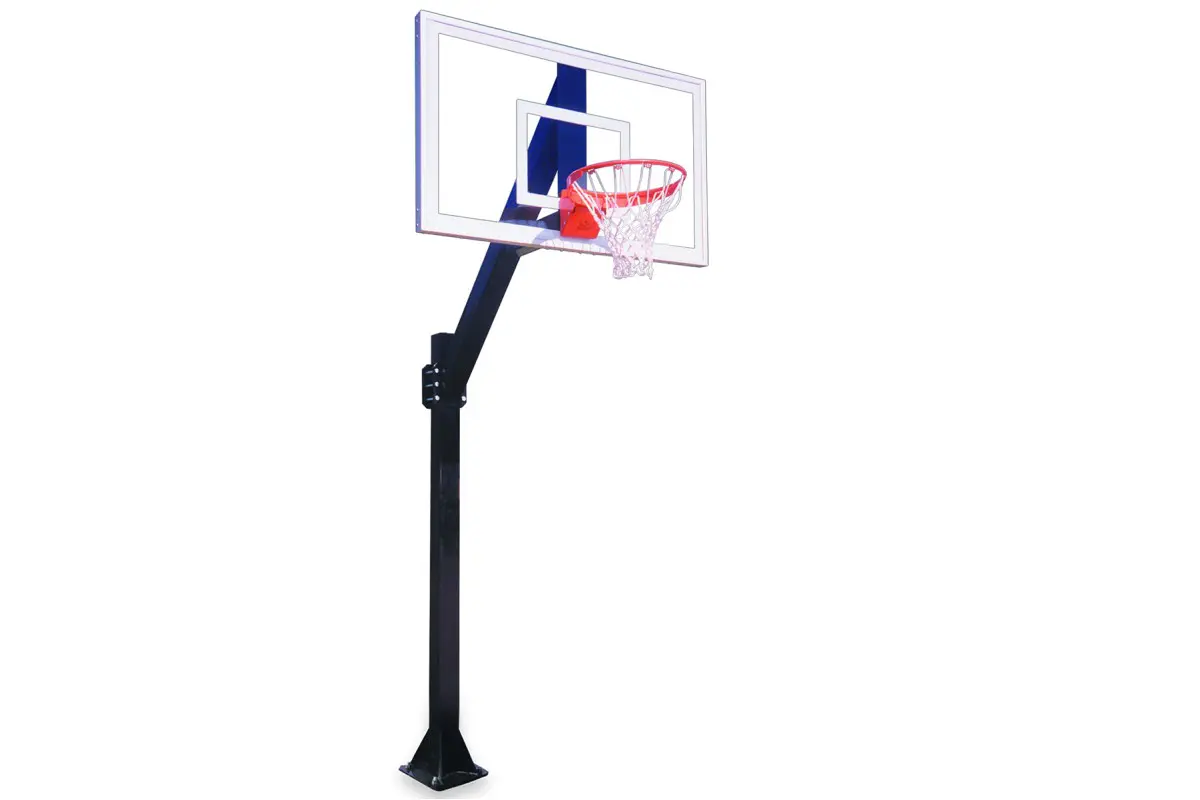

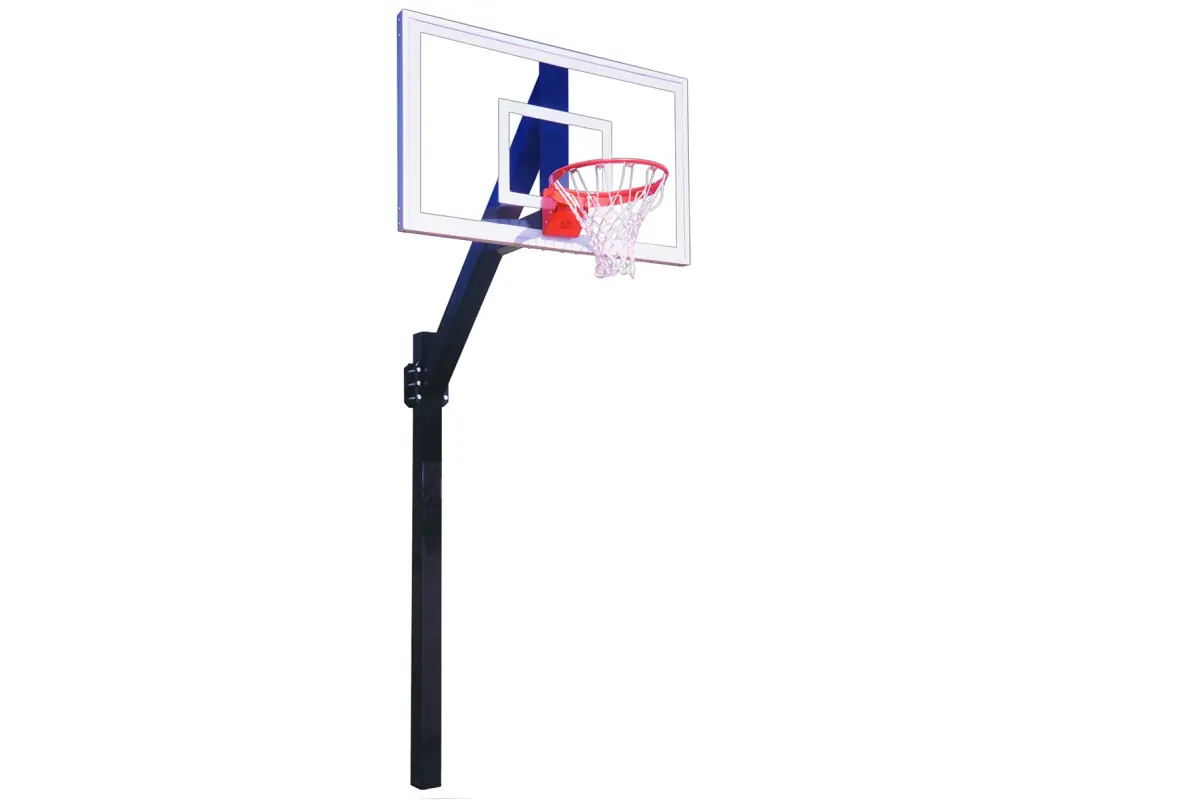

Pro – 36″x60″x1/2″ tempered glass backboard, heavy duty breakaway goal, net

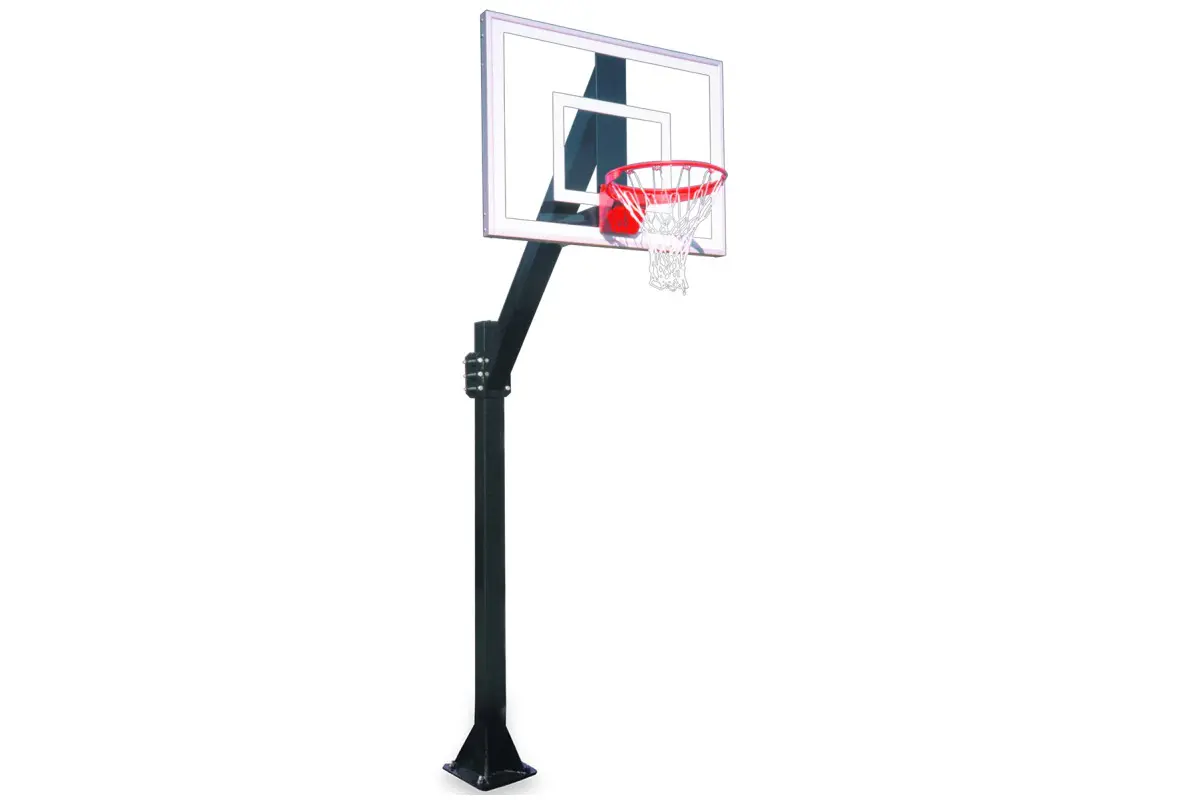

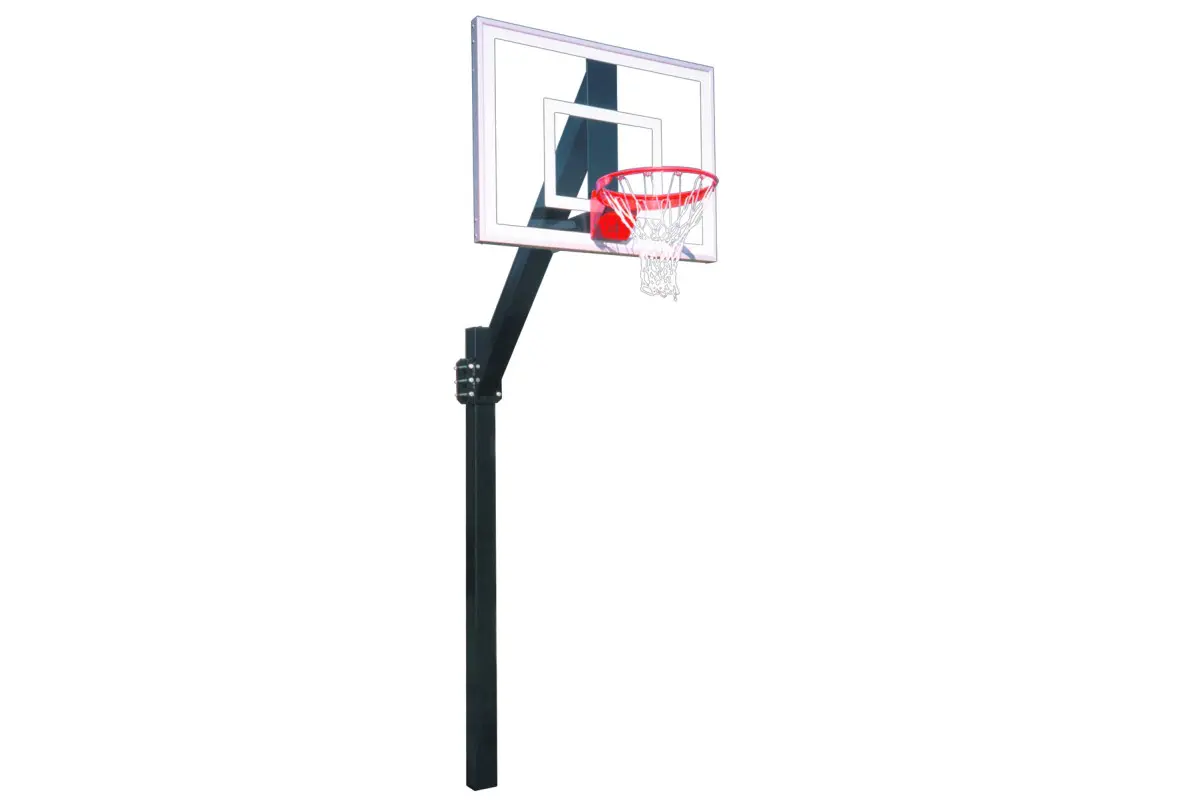

Ultra– 36″x54″x 1/2″ tempered glass backboard, heavy duty breakaway goal, net

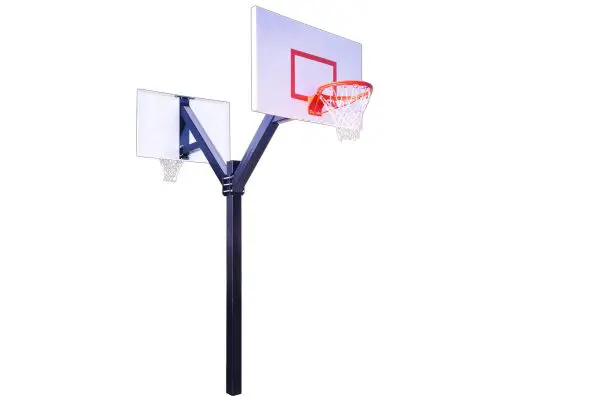

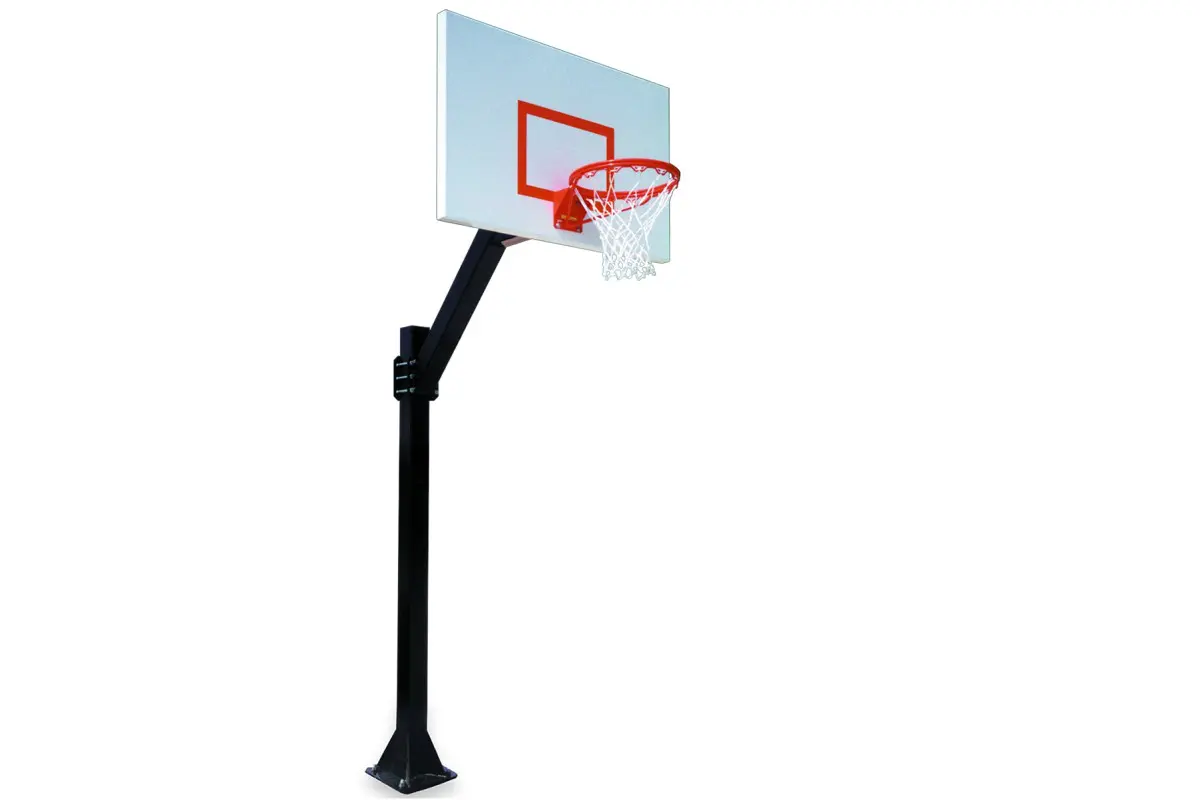

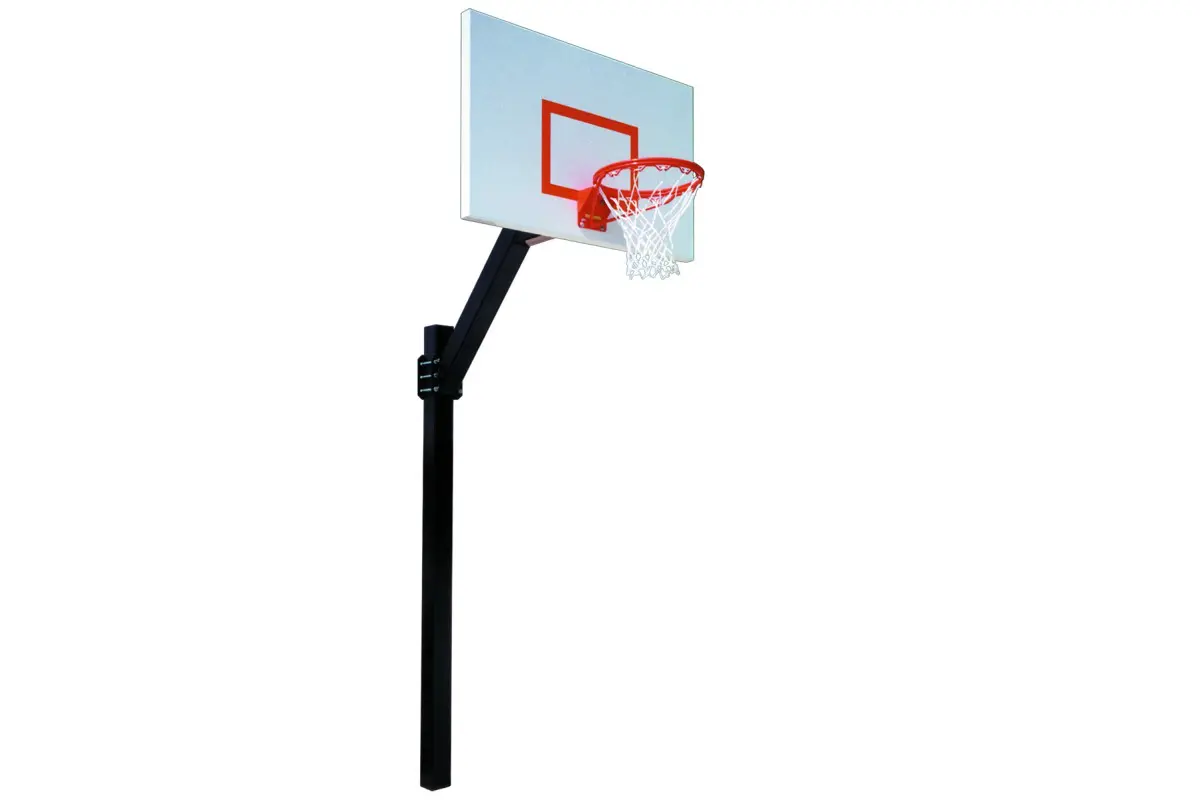

Extreme– 36″x60″ steel backboard, unbreakable fixed goal, net

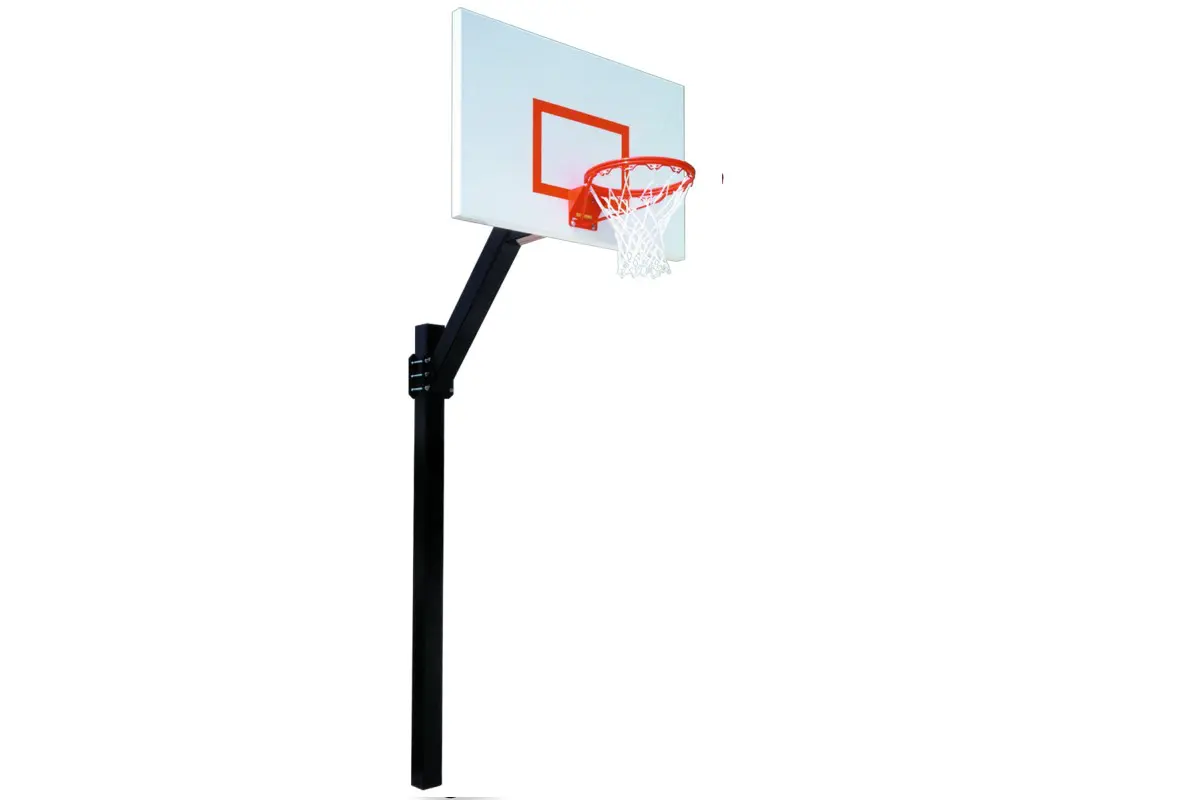

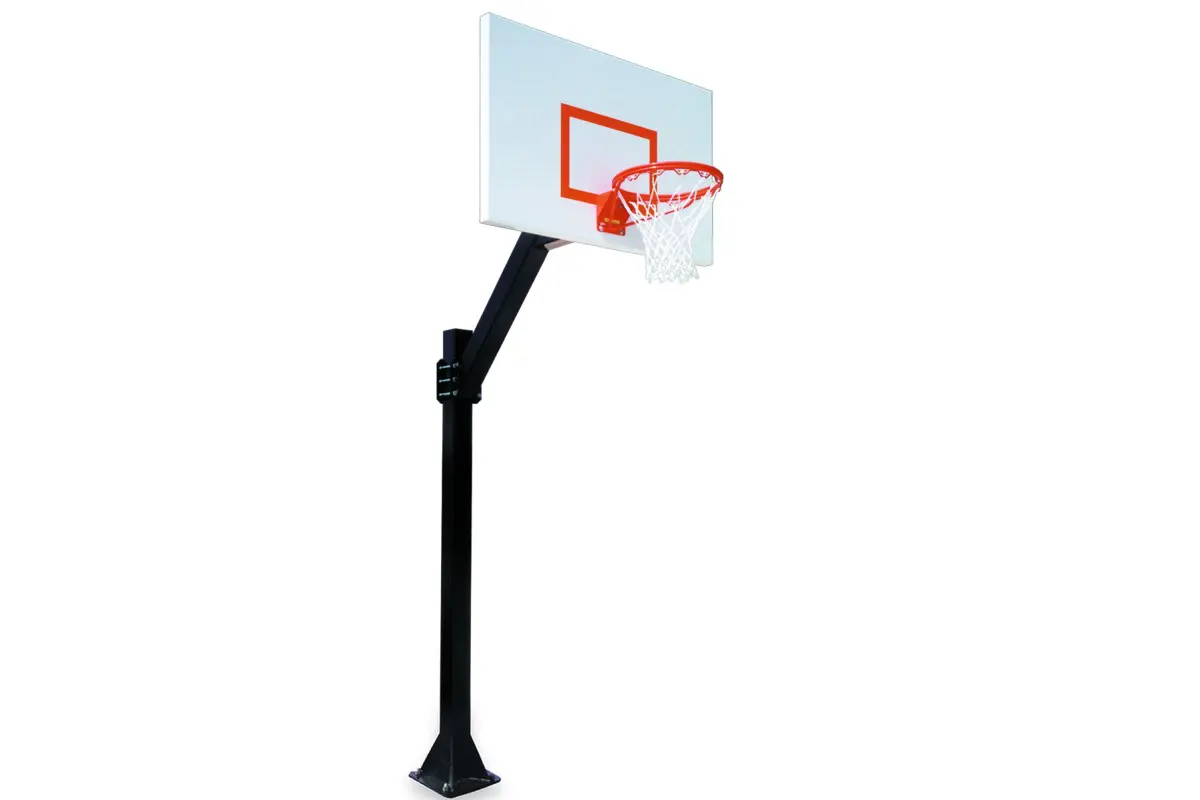

Endura – 36″x60″ aluminum backboard, unbreakable fixed goal, net

Description

The Legend Jr. Fixed Height Basketball Goal offers a combination of playground durability and professional performance!

The Legend Jr.’s vertical post and extension arm are both constructed of rugged 5″ square 3/16″ thick tubular steel. Combined they provide top-notch performance in both durability and rigidity. The post is set back 52″ for added safety.

The extension arm on the Legend Jr. is attached to the vertical post using six high tensile 5/8″ bolts.  Though the Legend Jr. is considered a “Fixed Height” goal, the extension arm can be bolted at any height along the post.

First Team offers a large selection of basketball backboards and rims with the Legend Jr. Fixed Height Basketball Goal. Choose a Legend Jr. package with one of our Response tempered glass backboards if you are wanting authentic gymnasium style ball reaction.

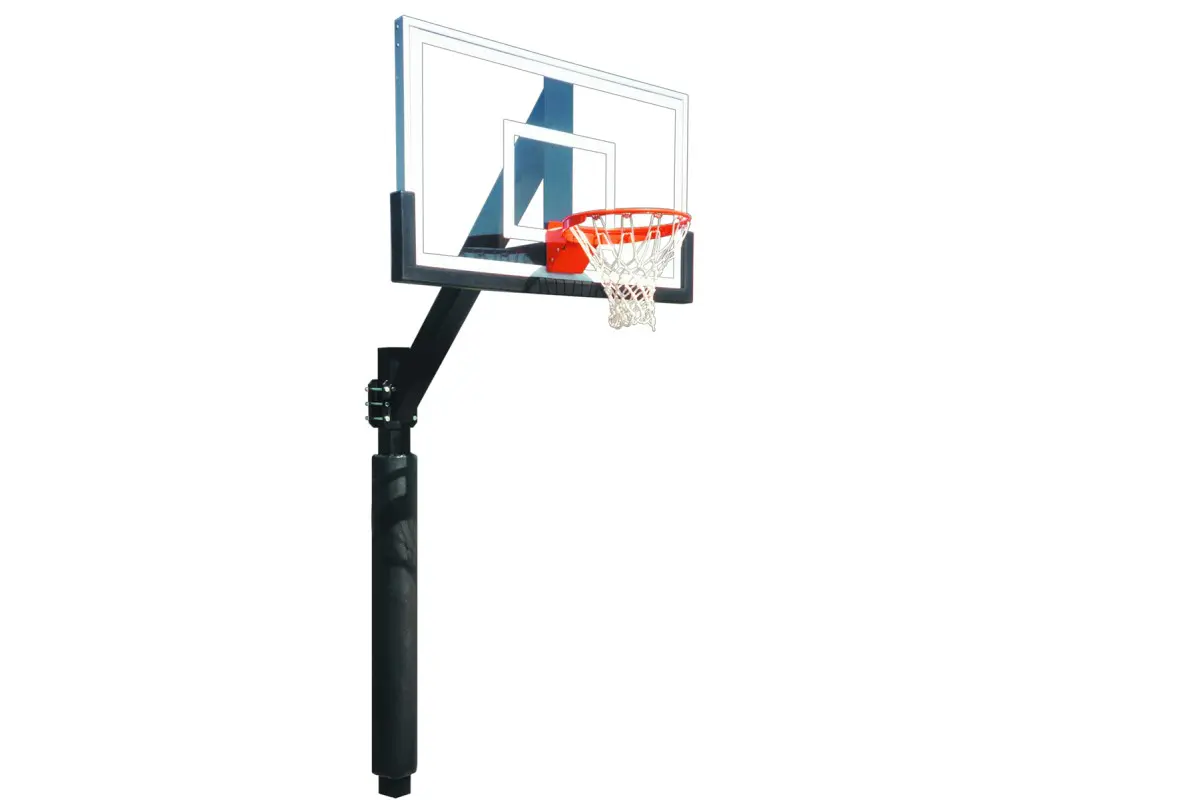

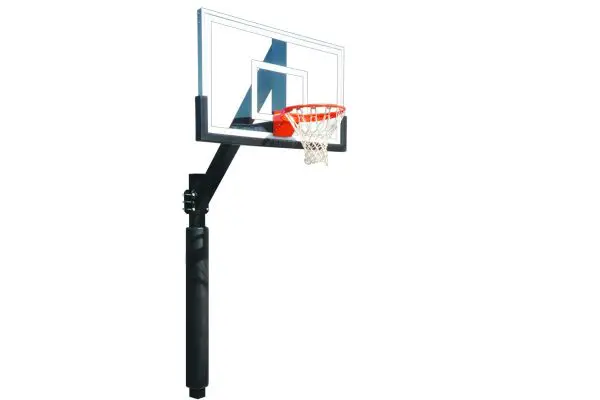

For added safety, pole padding and backboard padding are available for most Legend Jr. packages.

Every Legend Jr. Fixed Height Basketball Goal package comes with a Lifetime Superior Warranty. Legend Pro model is residential application only.
