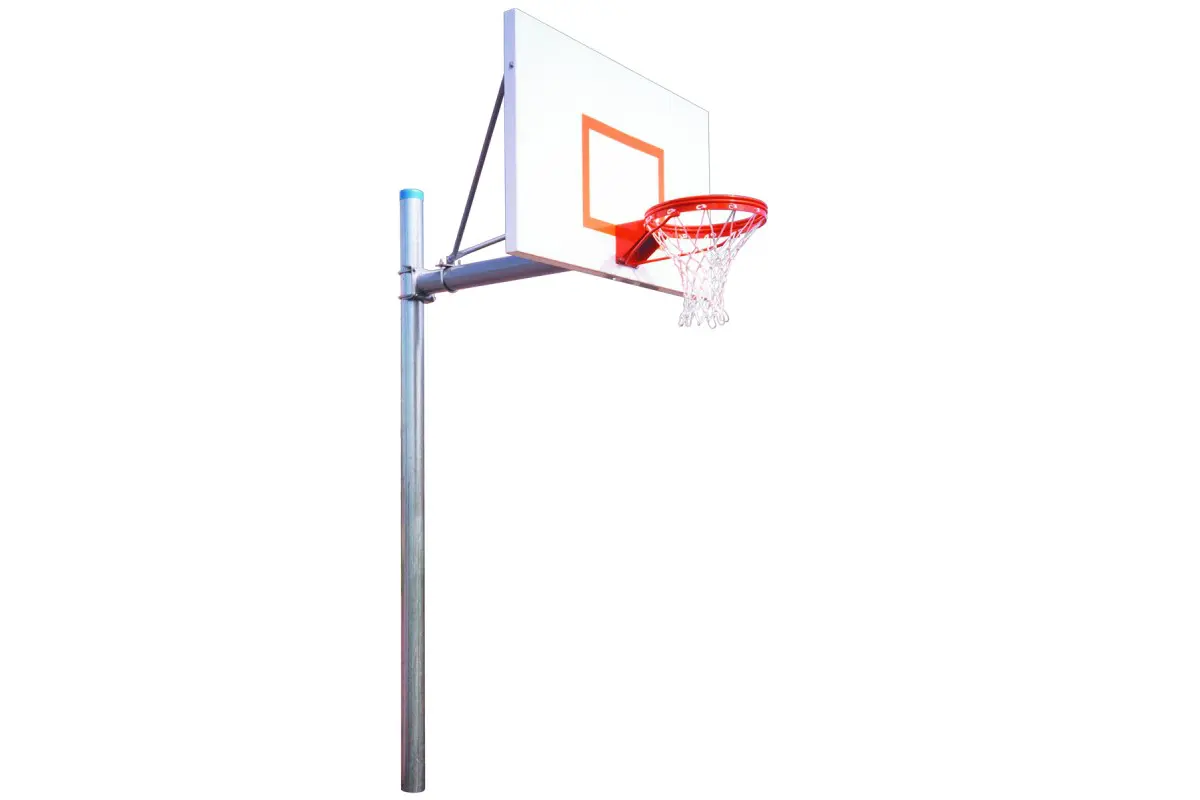

First Team Renegade In-ground Fixed Height Basketball System
First Team Renegade In-ground Fixed Height Basketball System:
- Extensive backboard selection available in steel, aluminum, fiberglass or clear acrylic and ranging in size from 36” x 48 to 42” x 72”.
- Post to backboard extension distance is 48″.
- Backboard braces for superior backboard rigidity.
- Superior tuff flex or fixed goals are direct mounted to eliminate backboard stress.
- Vinyl post cap seals out moisture.
- Extension arm and braces are powder coated.

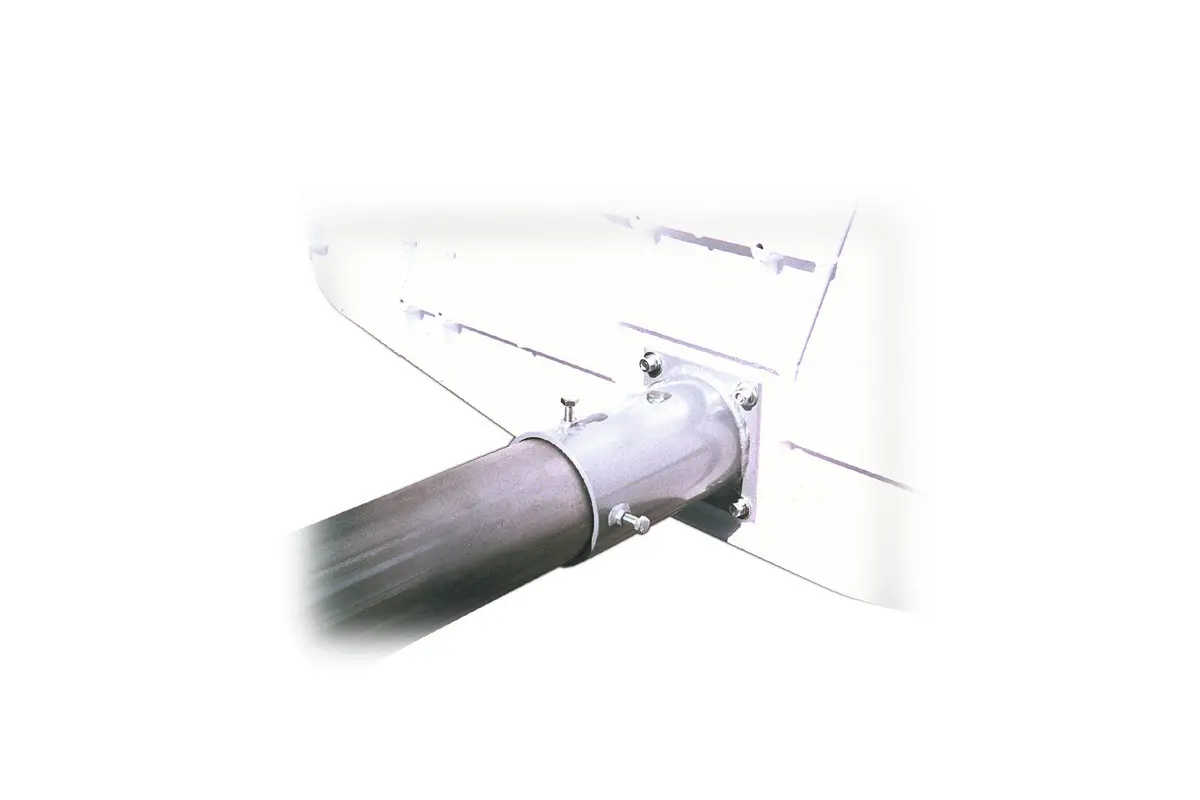

- Extension arm clamps to vertical post using U-bolts.
- Extension arm can be moved by loosening U-bolts.
- Post is weather resistant galvanized.
- Heavy-duty 4 1/2” O.D. Schedule 40 steel post.
- Post is buried 48” below playing surface.
MODELS: Model name designates backboard size and material and in some cases the style of goal.

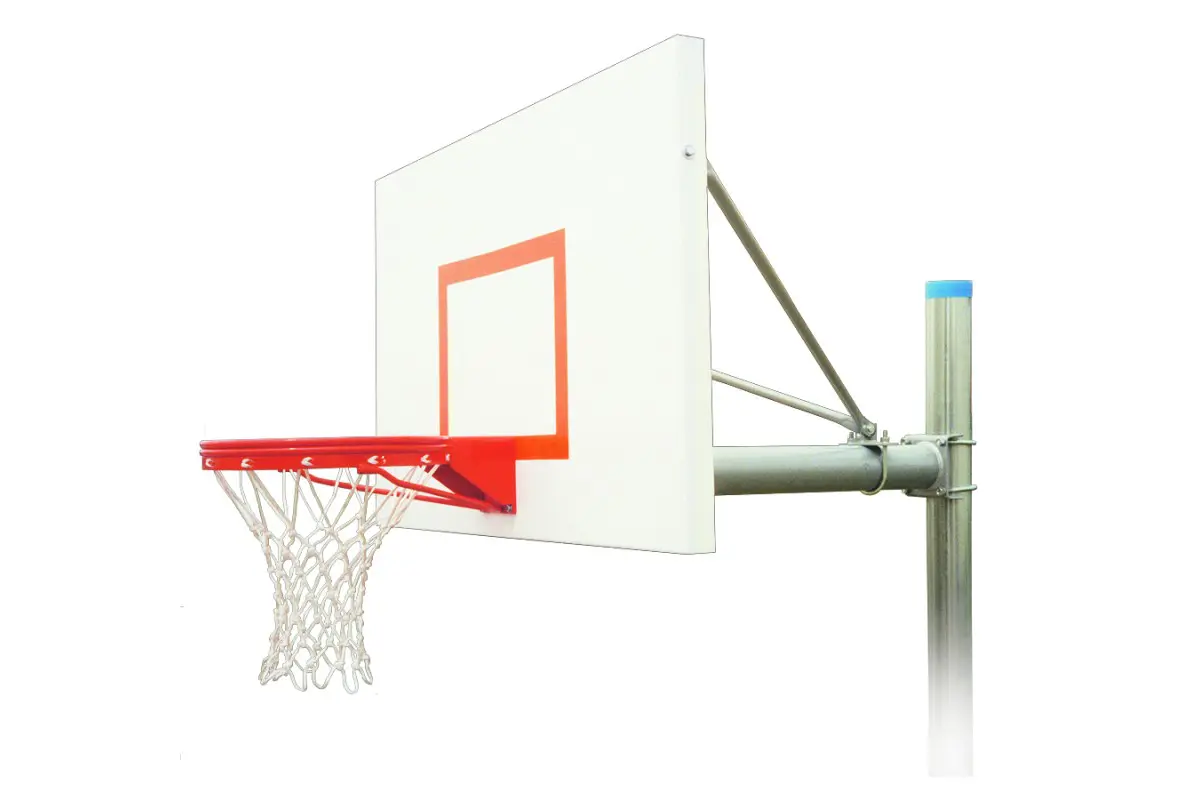

Extreme – 36″x60″ white powder coated steel backboard, unbreakable fixed goal, net

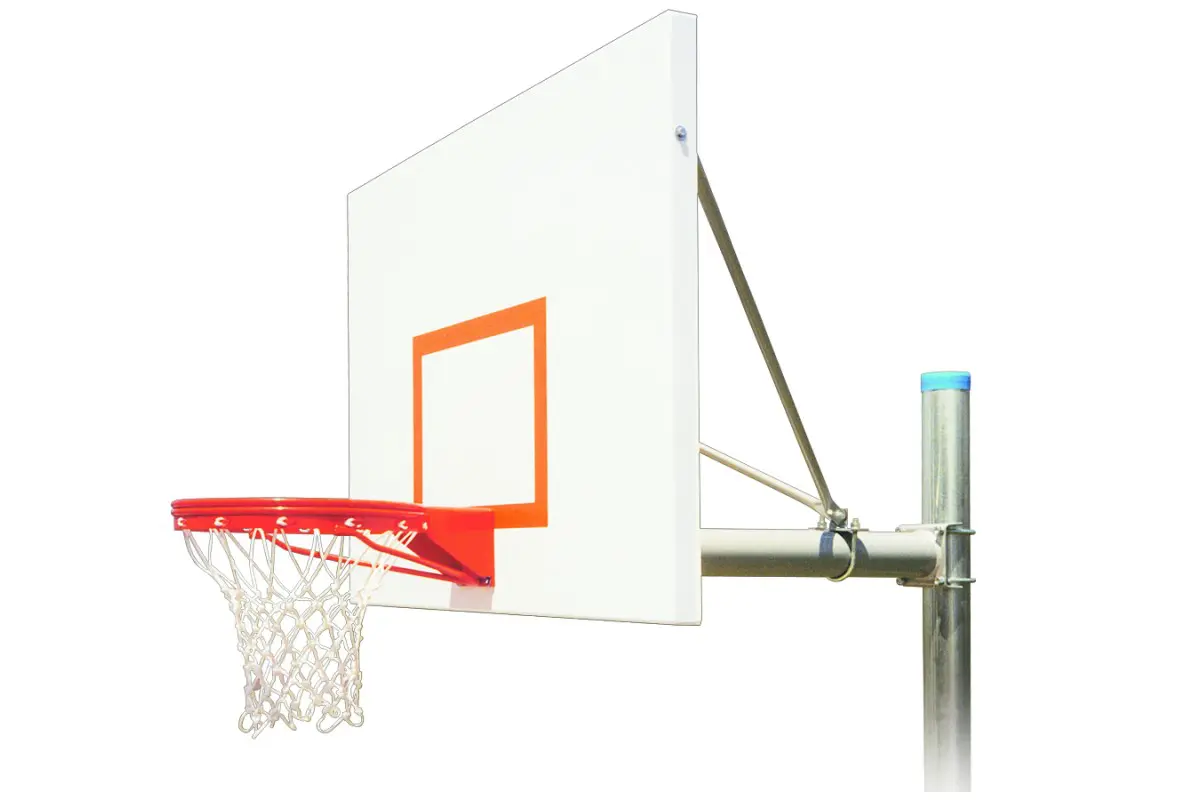

Playground – 42″x60″ white powder coated steel backboard, unbreakable fixed goal, net
Excel – 42″x72″ white powder coated steel backboard, unbreakable fixed goal, net

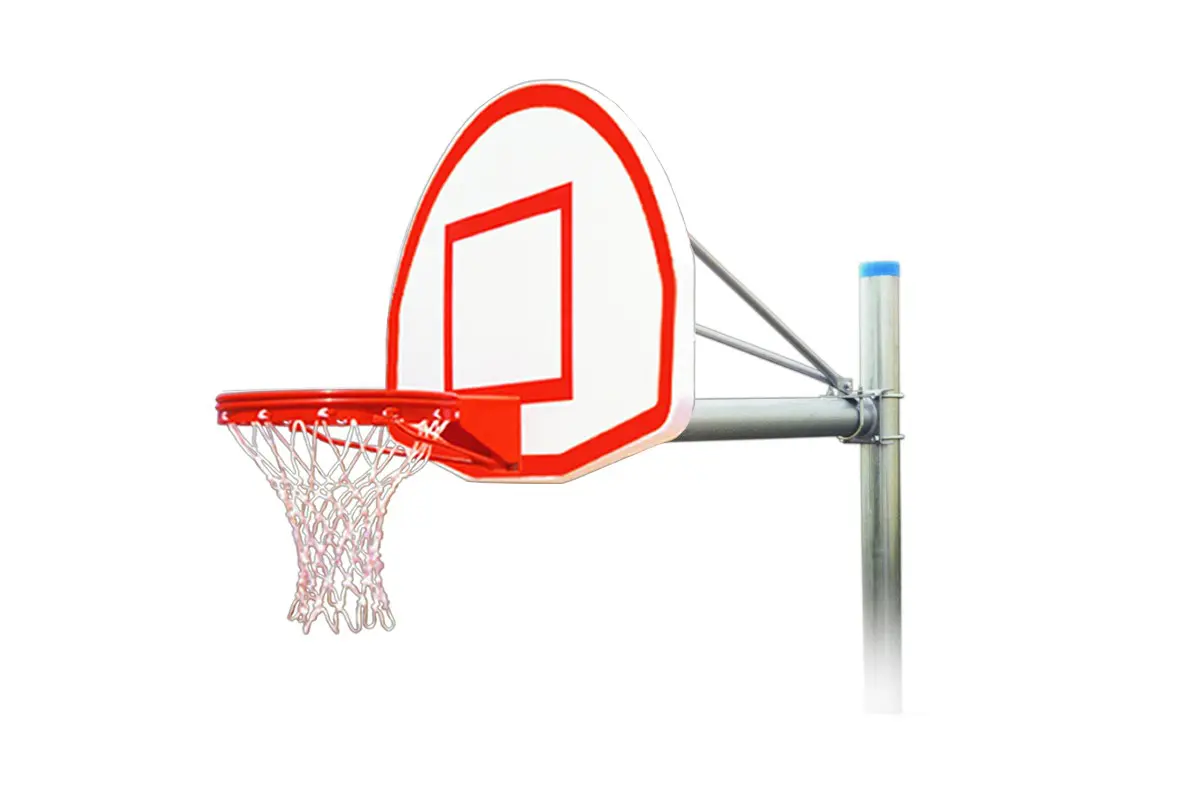

Max – 36″x54″ fan-shaped white powder coated aluminum backboard, unbreakable fixed goal, net

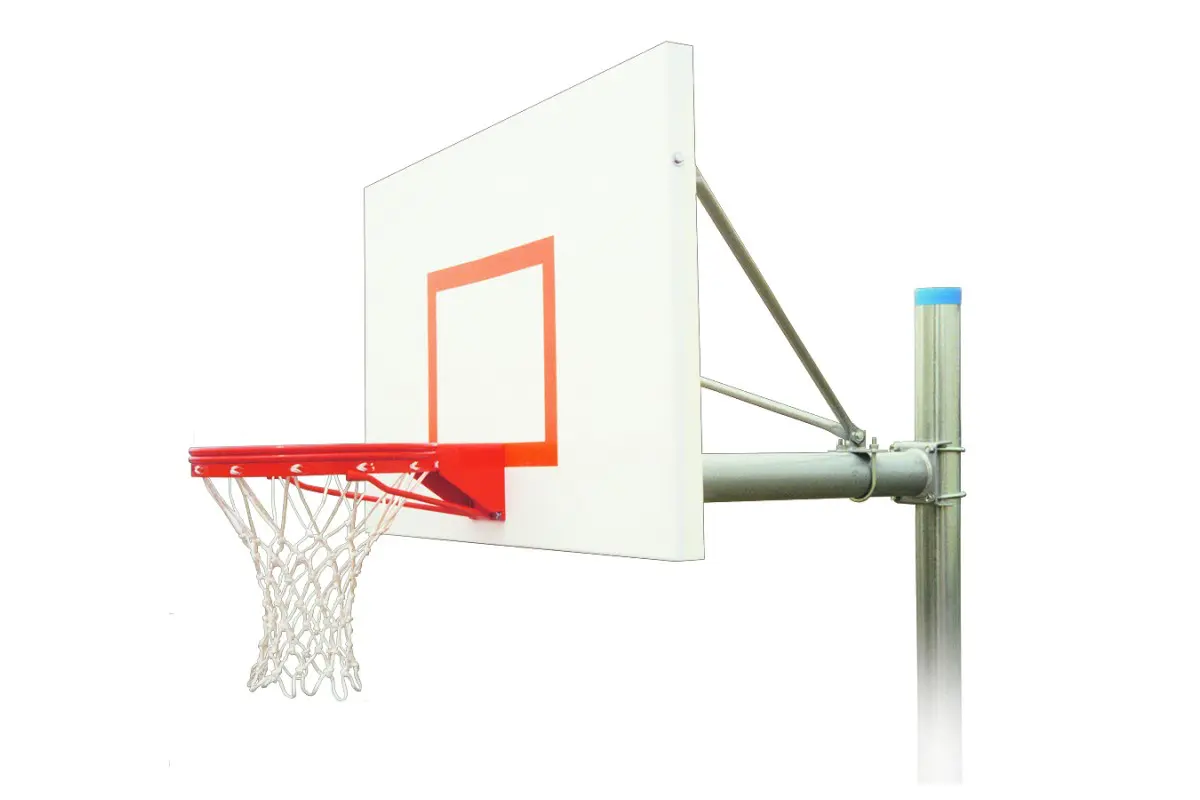

Endura – 36″x60″ aluminum backboard, unbreakable fixed goal, net

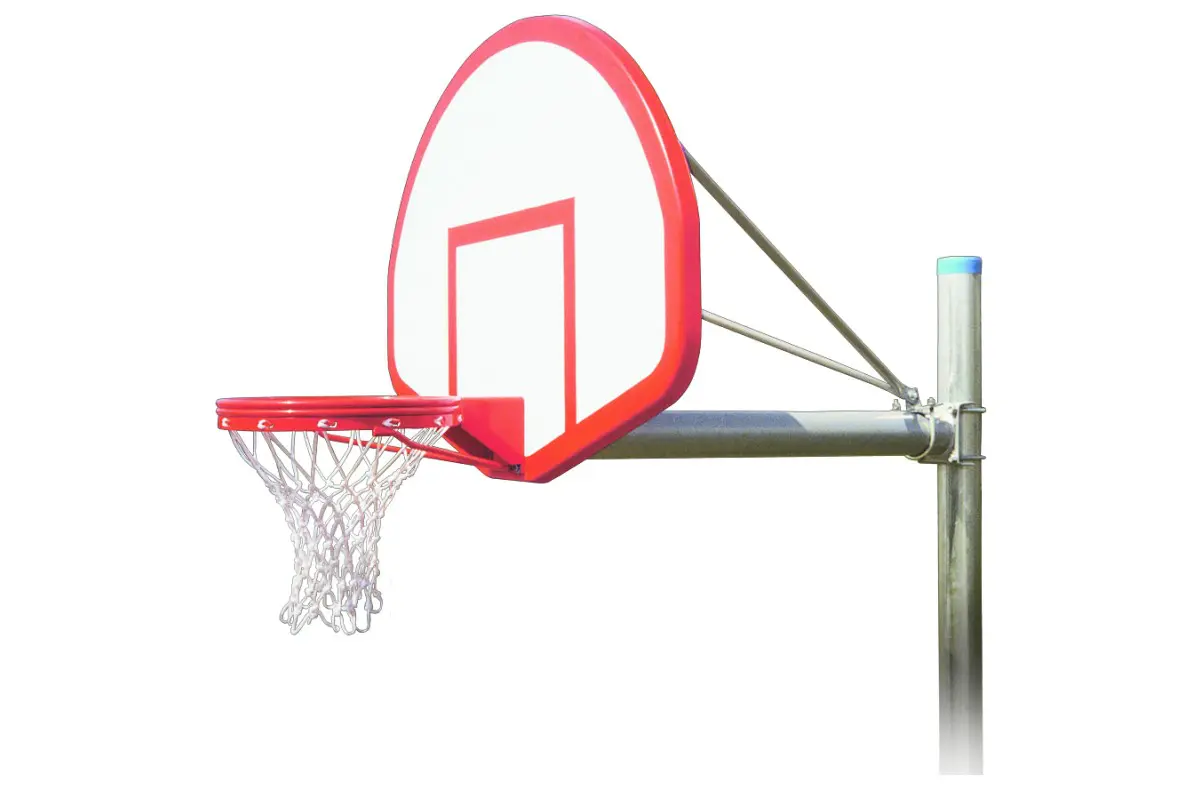

Flight – 39″x54″ fan-shaped white fiberglass backboard, unbreakable fixed goal, net
Dynasty – 42″x72″ white fiberglass backboard, unbreakable fixed goal, net

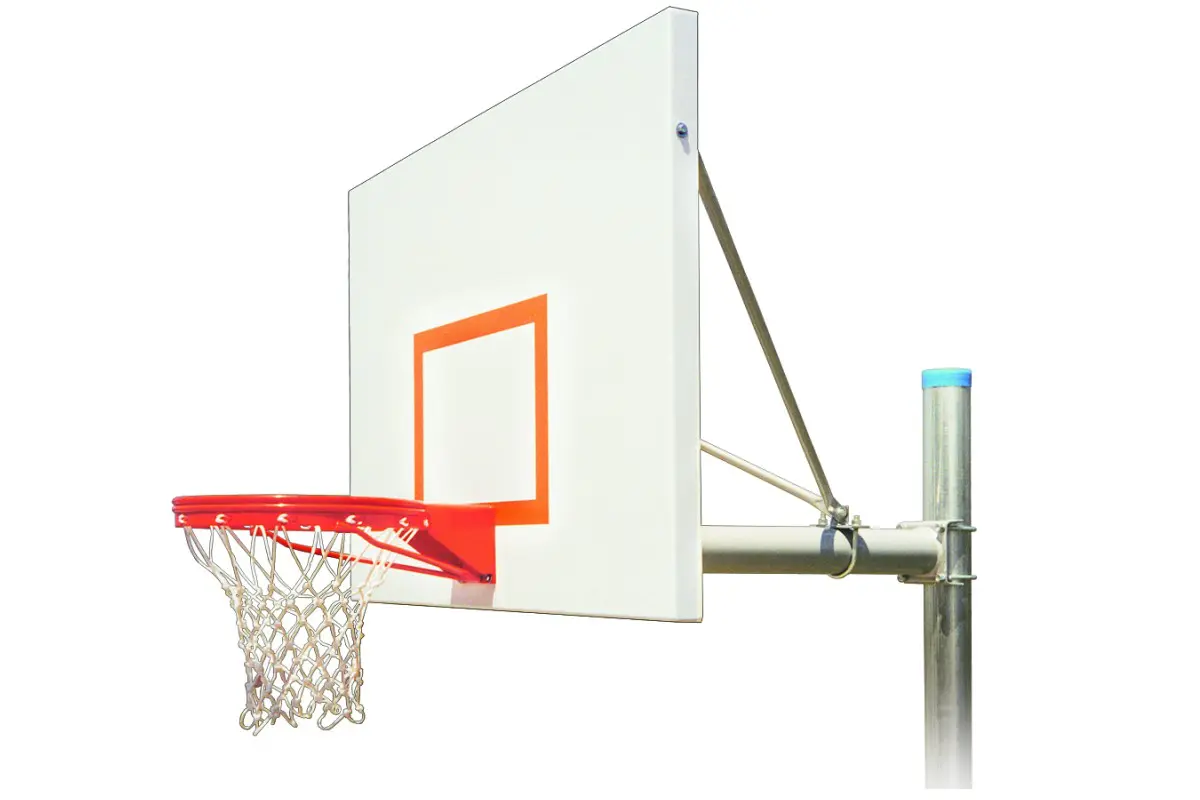

Impervia – 42″x60″ white powder coated aluminum backboard, unbreakable fixed goal, net

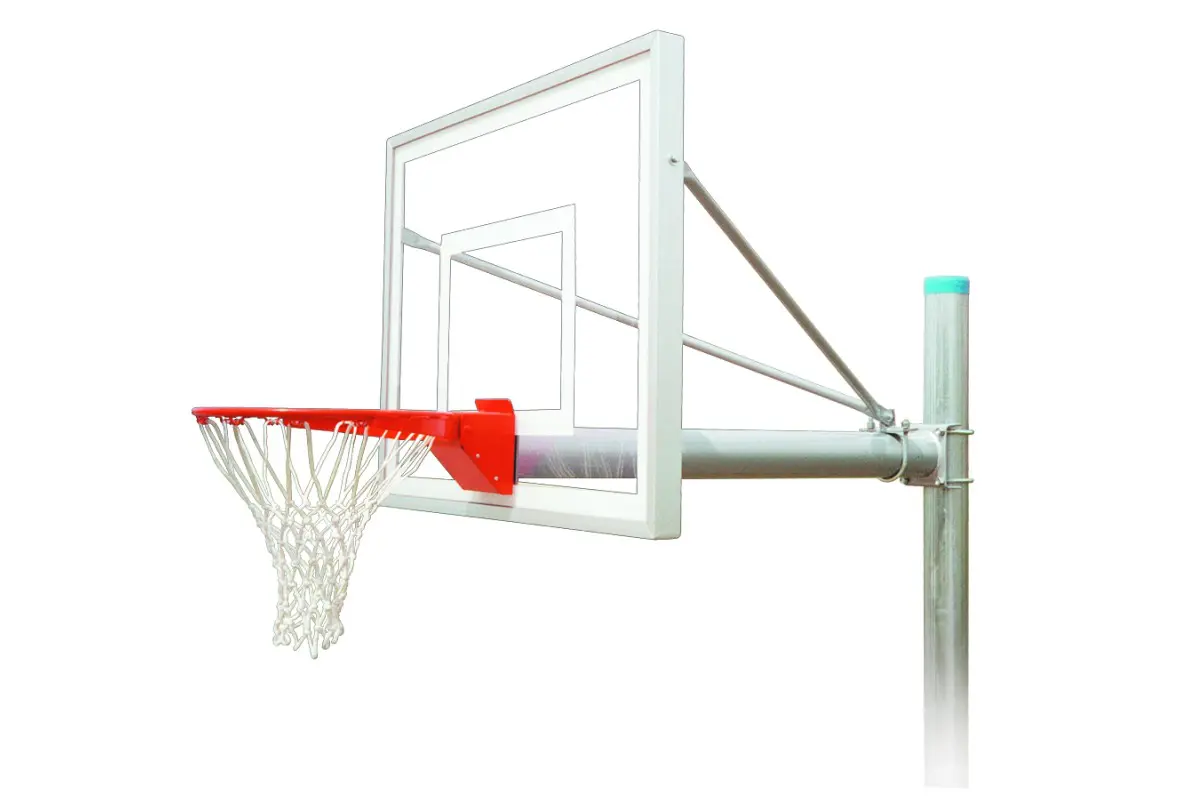

III – 36″x54″ clear acrylic backboard, heavy duty breakaway goal, net

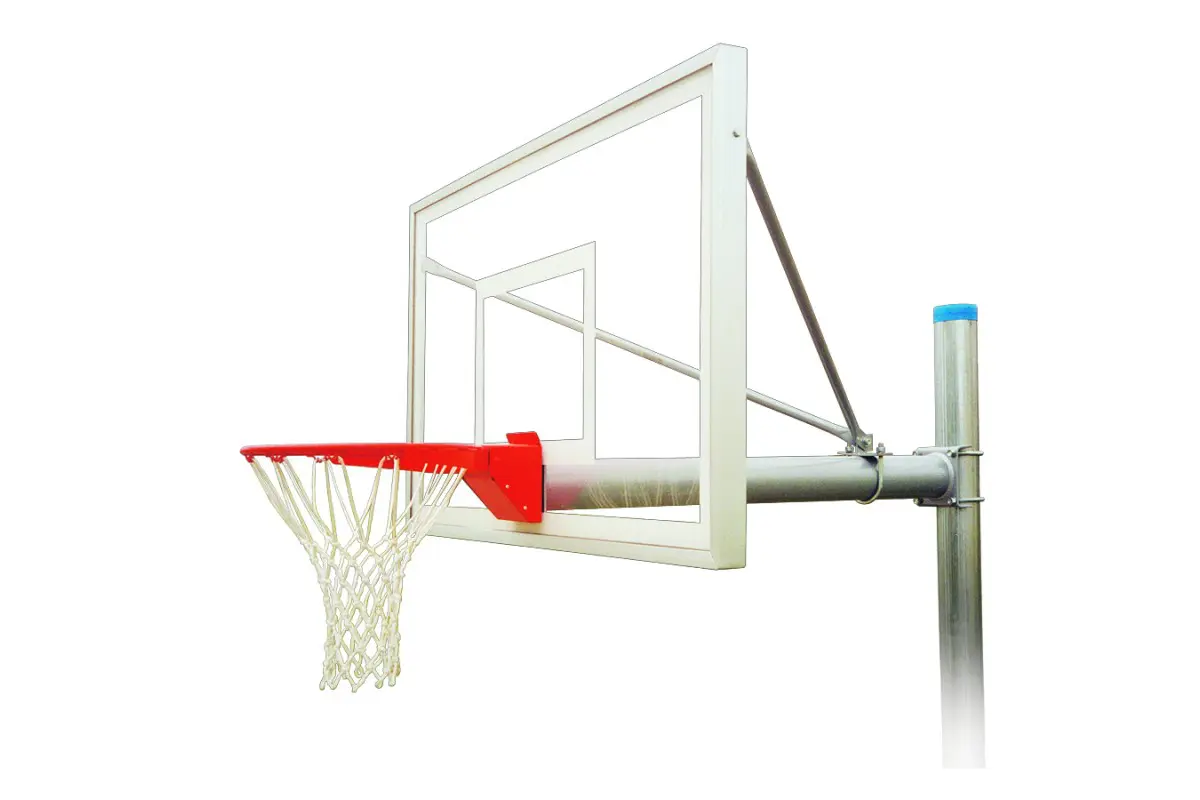

Select – 36″x60″ clear acrylic backboard, heavy duty breakaway goal, net

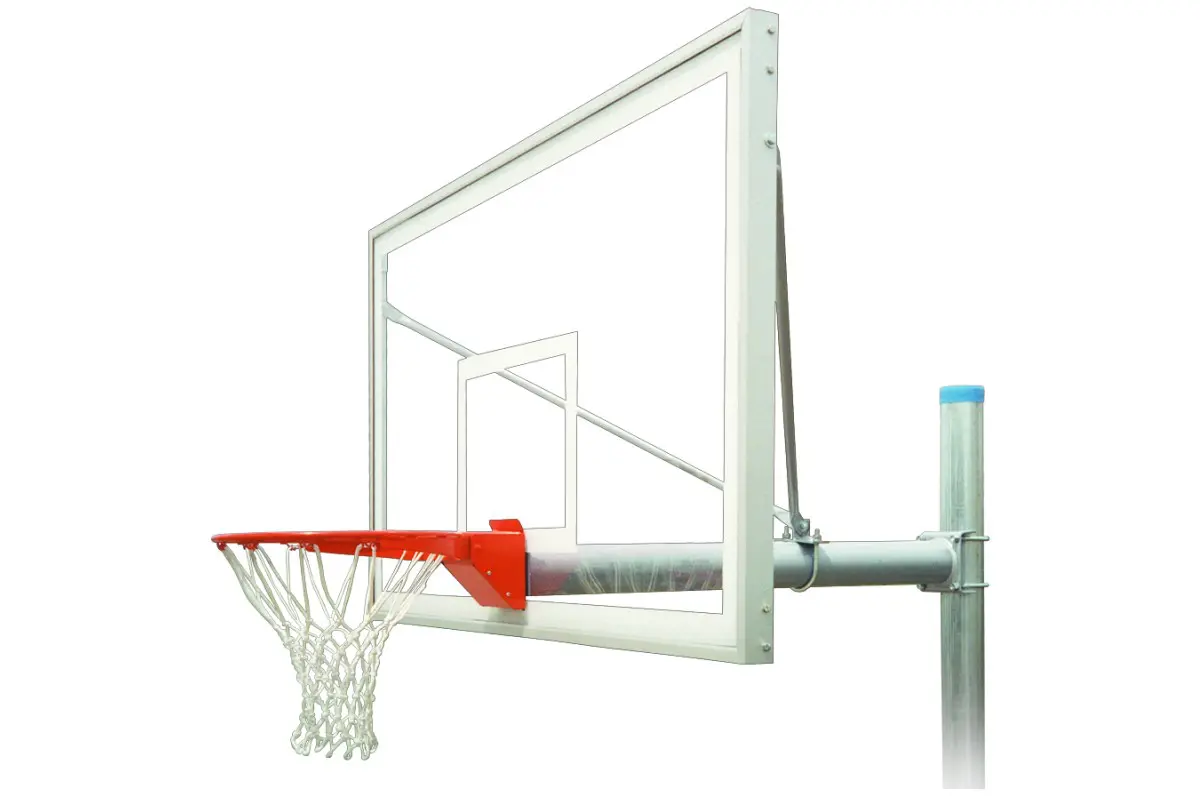

Supreme – 42″x72″ clear acrylic backboard, heavy duty breakaway goal, net
Description
The Renegade Fixed Height Basketball Goal offers commercial durability and the added flexibility sometimes needed on the playground.
The Renegade post is constructed of 4 1/2″ O.D. galvanized schedule 40 tubing. The post buries into the concrete a full 48″ deep. A vinyl tip cap seals out moisture.
The extension arm on the Renegade is attached to the vertical post using two heavy duty U-bolts. Though the Renegade is considered a “Fixed Height” goal, the U-bolts can be loosened, allowing the arm to be re-attached at any given height along the post.
An extensive selection of basketball backboards and rims are available on the Renegade. Choose the package that fits your needs.
Every Renegade Fixed Height Basketball Goal package comes with a 20-Year Limited Warranty.
